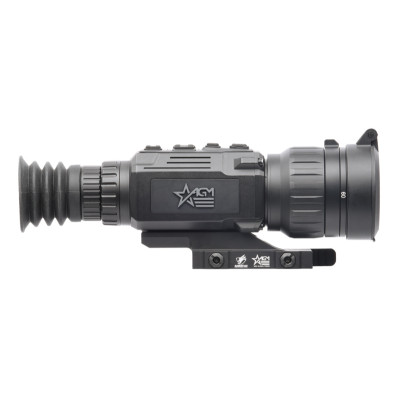

AGM Clarion 640 Dual Focus (35/60) Thermal Imaging Rifle Scope

AGM Clarion 640 Dual Focus (35/60) Thermal Imaging Rifle Scope

AGM Clarion 640 Dual Focus is a thermal imaging rifle scope designed for shooters who want both a wider field of view and stronger base magnification in the same optic without changing devices. Its core feature is a mechanical dual-lens optical system that lets the user switch between a 35 mm lens and a 60 mm lens, changing base magnification and field of view without reducing sensor resolution.

This model uses a 640×512, 12 μm VOx uncooled focal plane array thermal detector with NETD below 20 mK and a 50 Hz refresh rate. In the 35 mm configuration, it provides 2× base magnification with a 12.5° × 10.0° field of view, while the 60 mm configuration gives 3× base magnification with a 7.3° × 5.9° field of view, which makes it easier to adapt between scanning larger areas and more precise target identification.

AGM Clarion 640 also includes the field features expected in a serious hunting optic, including video recording, audio recording, image capture, Shot-Activated Recording, Wi-Fi hotspot, stadiametric rangefinder, standby mode, 16 GB built-in EMMC storage, multiple reticle options, and several color palettes. The scope uses a removable rechargeable battery system and supports up to 8.5 hours of continuous operation at 25°C with hotspot off.

With a detection range of up to 3000 m, OLED display, IP67 protection, recoil resistance up to 1000 g / 0.4 ms, and a compact housing that works well on both AR and bolt-action rifles, the Clarion 640 Dual Focus is a strong solution for night hunters who need one thermal scope to cover different hunting environments. For Professional Optics, it is a technically distinctive thermal model with competitive prices and delivery across Europe from Split, Croatia.

Technical specifications AGM Clarion 640 Dual Focus

Installation and use

AGM Clarion 640 is built for users who need one thermal riflescope to cover both wider terrain scanning and more deliberate longer-range observation. The mechanical switch between 35 mm and 60 mm lens configurations is the defining advantage of this model because it changes the optic’s working behavior in a way that software zoom alone cannot match.

In real use, the 35 mm mode is more practical for broader search and faster target acquisition, while the 60 mm mode is better suited to more careful identification and shot placement. That makes the scope particularly useful for hunters moving between tighter terrain, open fields, and mixed-distance engagements during the same outing.

Maintenance is simple and field-oriented. The main points are keeping both lens surfaces clean, managing the removable rechargeable battery correctly, and using USB Type-C external power when longer observation or recording time is needed.

FAQ

What makes AGM Clarion 640 Dual Focus different from a standard thermal scope?

Its main difference is the mechanical dual-focus lens system that allows switching between a 35 mm and a 60 mm lens in the same optic.

What sensor does it use?

It uses a 640 × 512 VOx uncooled focal plane array thermal detector with 12 μm pixel pitch.

What is the thermal sensitivity?

The specified NETD is less than 20 mK.

What magnification does it offer?

It provides 2× base magnification in 35 mm mode and 3× base magnification in 60 mm mode, with total digital magnification ranges of 2× - 16× and 3× - 24×.

What is the detection range?

The stated detection range is up to 3000 m.

Does it support video recording?

Yes. It supports video recording, audio recording, image capture, and Shot-Activated Recording.

How much internal storage does it have?

It has 16 GB of built-in EMMC storage.

Does it support Wi-Fi?

Yes. It includes Wi-Fi hotspot functionality and supports the AGM Connect app.

What kind of rangefinder does it have?

It uses a stadiametric rangefinder.

How long does the battery last?

Battery life is up to 8.5 hours of continuous operation at 25°C with hotspot off.

Is it suitable for outdoor use?

Yes. It has IP67 protection and recoil resistance up to 1000 g / 0.4 ms.
