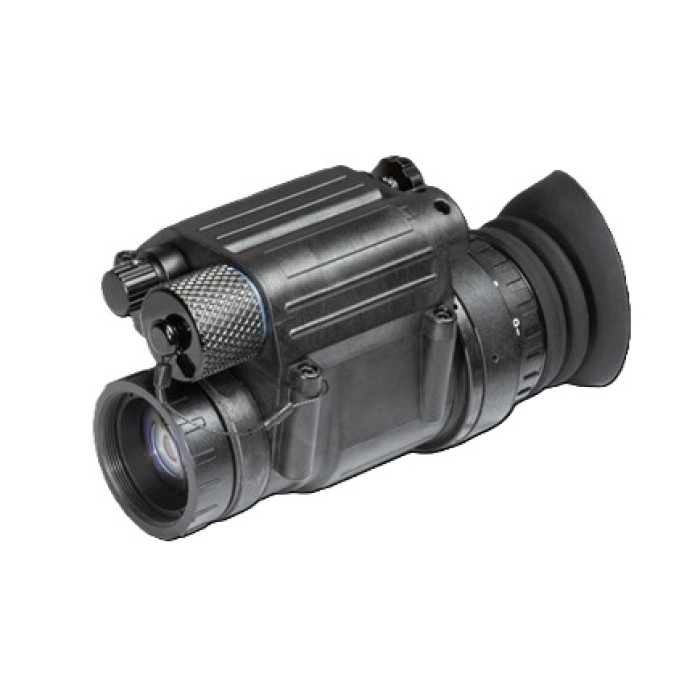

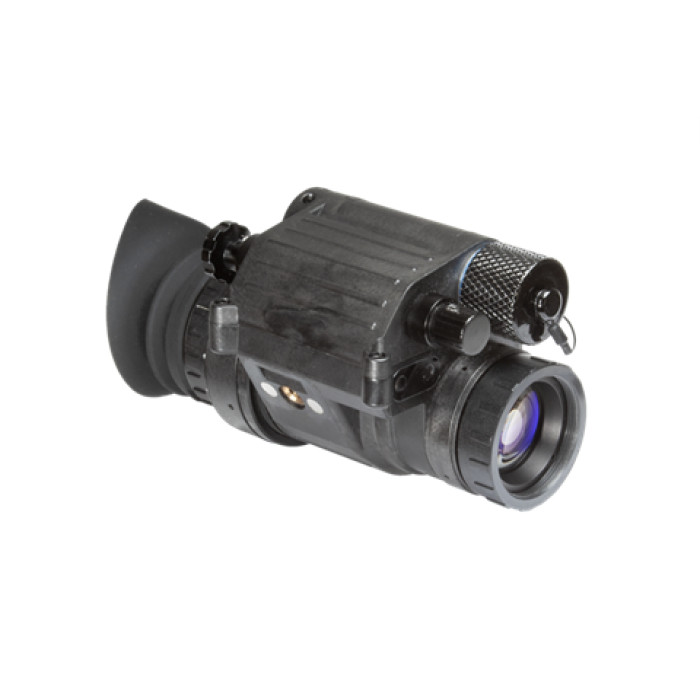

AGM PVS-14L NL1 Lightweight – Night Vision Monocular
AGM PVS-14 NL1 NV Monocular – High-Res Gen 2 IIT
The AGM PVS-14
NL1 night vision monocular delivers Gen 2+ "Level
1" image intensifier performance with 51-64 lp/mm resolution for sharp,
detailed green phosphor imaging in zero light, ideal for hunters scanning
trails or airsoft players navigating dark fields. Its compact 26mm f/1.2 lens
offers a wide 40° field of view from 0.25m to infinity focus, with manual gain
control (25-5000x), integrated adjustable IR illuminator for reading maps at
distance, and auto shut-off to protect the tube from bright light.
Outdoor enthusiasts trust this rugged, waterproof 320g
unit for 50-hour AA battery life, helmet head-mount versatility, and extreme
temperature operation from -51°C to +49°C, making it a staple for prolonged
night observations. Order from Professional Optics for competitive prices on
proven NV reliability.
Technical
Specifications AGM PVS-14 NL1
|
Feature |
Specification |
|
Intensifier |
Gen
2+ Level 1 (51-64 lp/mm) |
|
Lens
System |
26mm
f/1.2 |
|
Magnification |
1x
(3x/5x lenses optional) |
|
Field
of View |
40° |
|
Focus
Range |
0.25m
to ∞ |
|
Diopter
Adjustment |
-6
to +4 dpt |
|
Battery
Life |
Up to 50 hours (1x AA) |
|
Dimensions |
114
x 63 x 69 mm |
|
Weight |
320
g |
|
Operating
Temperature |
-51°C
to +49°C |
|
Waterproof |
IP67
(submersible) |
|
IR
Illuminator |
Built-in,
adjustable |
This monocular excels in practical low-light use with
its high-light cutoff and low-battery/IR indicators, allowing seamless
hands-free helmet mounting or rail adaptation for close-quarters scanning
during dusk hunts or tactical drills. The ergonomic rubber eyecup blocks stray
light, while diopter tuning ensures clarity for glasses wearers, and the
flip-up design stows vertically without removing gear. Buy now from Split,
Croatia—shipping across the European Union delivers fast.
Installation is straightforward: Insert AA battery, focus lens ring, adjust diopter, activate IR for
total darkness, and secure head harness—maintain by wiping optics with
microfiber and storing dry. Its lightweight polymer housing survives drops and
impacts for reliable field performance. Shipping from Split, Croatia to the
European Union.
Frequently
Asked Questions
·
What makes the Gen 2+
Level 1 tube superior for night use?
The Gen 2+ Level 1 intensifier provides 51-64 lp/mm resolution with clean FOV
and green phosphor for fatigue-free extended viewing, outperforming basic Gen 2
by capturing faint starlight without image distortion.
·
How long does the
battery last in real-world scenarios?
With one AA battery, it runs up to 50 hours at room temperature, dropping to 40
hours with heavy IR use, making it ideal for multi-day hunts or airsoft events
without frequent swaps.
·
Can it be

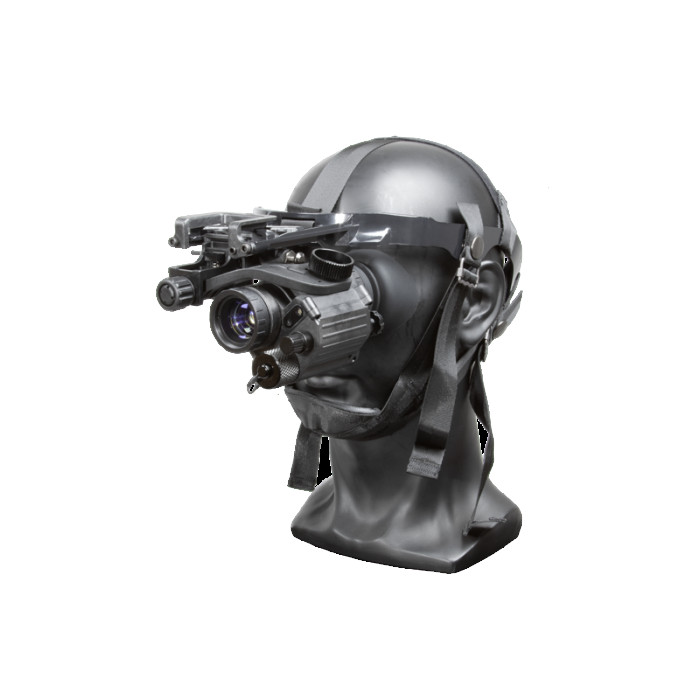

helmet-mounted for hands-free operation?
Yes, the included head harness and optional helmet
adapters enable secure flip-up mounting, with manual gain and IR controls
accessible without breaking observation for dynamic night navigation.
