Leapers Accu-Sync® 34 mm Picatinny Cantilever Mount (50 mm Offset, High Profile) | UTG®

In Stock
0
Product Code: AIR42250
SKU: 00220
66.99€
Short descriptio
Leapers ACCU-SYNC® 34 mm Picatinny Cantilever Mount, 50 mm Offset, High Profile, Black | UTGTechnical Specifications:FeatureSpecificationMaterialCNC machined 6061-T6 aluminumFinishMatte black anodizedMount TypePicatinny ... Read more...

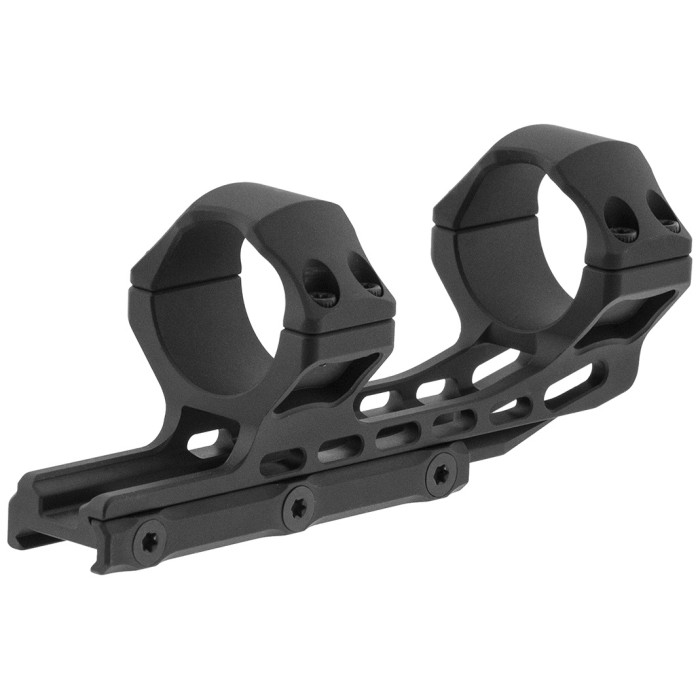

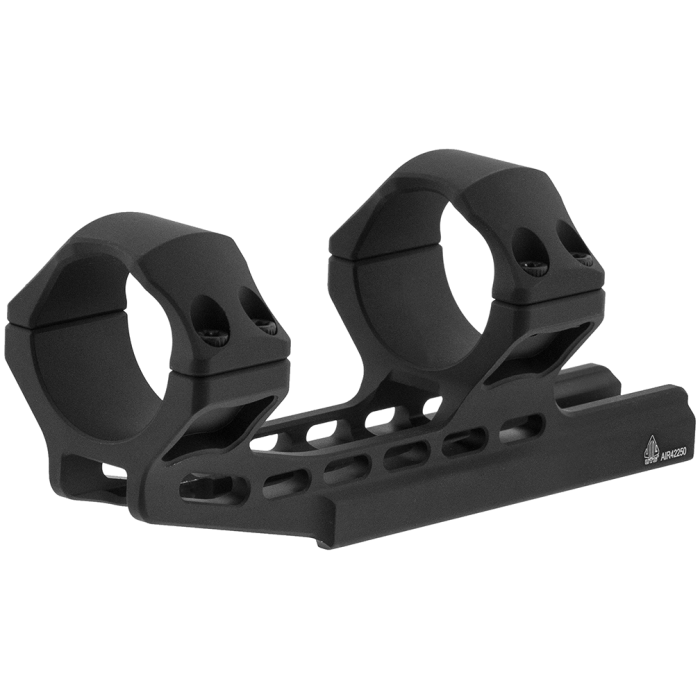

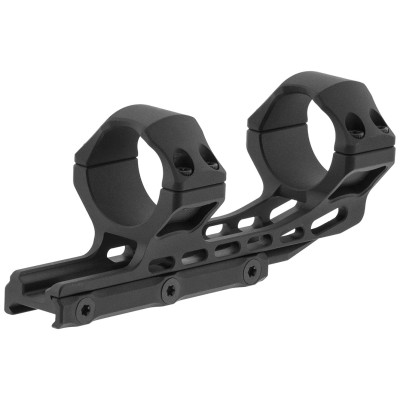

Leapers ACCU-SYNC® 34 mm Picatinny Cantilever Mount, 50 mm Offset, High Profile, Black | UTG

Technical Specifications:

Feature

Specification

Material

CNC machined 6061-T6 aluminum

Finish

Matte black anodized

Mount Type

Picatinny cantilever mount

Tube Diameter

34 mm

Offset Distance

50 mm

Base Length

100 mm

Center Height

39 mm

Saddle Height

22 mm (high profile)

Max Objective Diameter

Up to 77 mm

Weight

Approximately 170 g

Screws

Locking Torx screws

Recoil Stops

Integral square-shaped recoil stops

Torque Specs

Mount to rail: 35 Nm; Optic to mount: 25 Nm

Additional Features

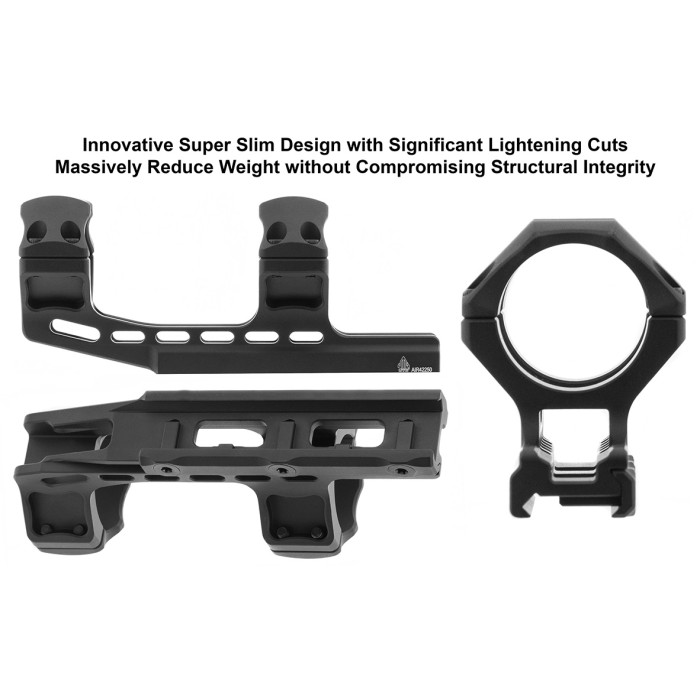

Radiused edges to prevent snags; lightweight design

Included Tools

T20 Torx wrench

This high-profile cantilever mount is designed for precise fit on MIL-STD-1913 Picatinny rails with a 50 mm offset. It fits 34 mm tube optics with objective bell diameters up to 77 mm. The mount features precision CNC machining from aircraft-grade aluminum, locking Torx screws, and integrated recoil stops for secure zero retention. Rounded edges prevent snagging, while the lightweight design maintains durability and corrosion resistance. Ideal for tactical and hunting applications.
