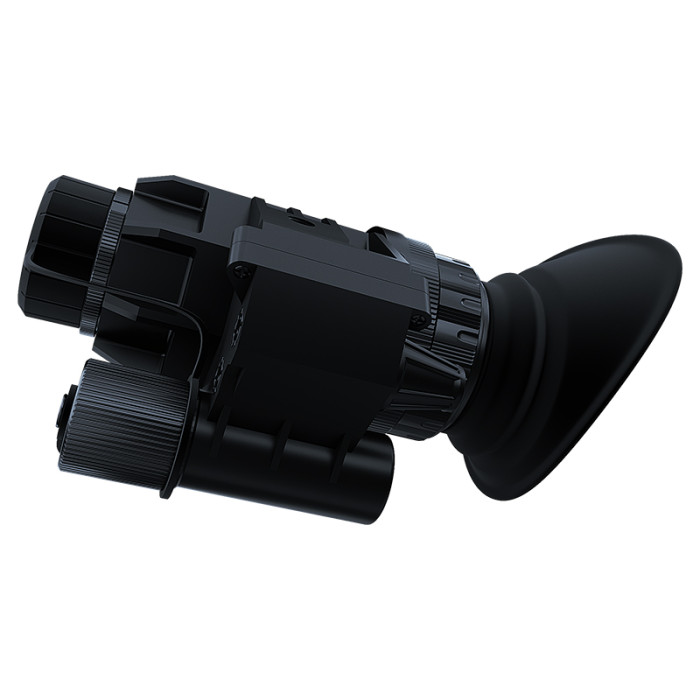

NVECTECH NVEC 14 Green Night Vision Monocular

25mm F1.2 objective lens, 1x magnification, 40° field of view. Gen 2+ green phosphor image intensifier tube. Manual/automatic gain control with bright-light cut-off. Infrared illuminator (940nm). 55+ hour battery life (AA). Head-mounted, handheld, or weapon-mounted compatible.

NVECTECH manufactures professional-grade night vision systems trusted by military and law enforcement worldwide. Ukrainian thermal and night vision specialist with extensive field experience. Green phosphor technology represents proven traditional night vision—battle-tested reliability across decades of operational deployment. Gen 2+ tubes deliver exceptional performance in demanding field conditions. NVECTECH NVEC 14 Green combines advanced tube technology with proven optical design for reliable night operations.

Specifications

Green Phosphor Gen 2+ Technology

Gen 2+ green phosphor delivers proven traditional night vision performance. 51-64 lp/mm resolution represents professional military standard. Green phosphor provides comfortable long-duration observation—human eye naturally adapted to green spectrum wavelengths. Lower power consumption enables extended battery life versus white phosphor alternatives. Figure of Merit (FOM) 1500+. Battle-tested technology proven across 30+ years military deployment worldwide.

Image Intensifier Performance

Gen 2+ green phosphor tube: 51-64 lp/mm resolution. Signal-to-noise 16.2+. Figure of Merit ≥1500. Close focus 0.25m enables small-detail observation without manual refocus. Automatic gain control adapts brightness to ambient light changes—seamless transition between high/low light conditions. Manual gain override (25-5000 units) enables operator precision tuning. Bright-light cut-off (BLC) protects tube from sudden bright exposure (flashlights, vehicle headlights, searchlights).

Infrared Illuminator

Integrated 940nm IR LED provides invisible illumination in total darkness. IR invisible to naked eye but detected by night vision systems. Enables full operational capability without ambient light dependency. Intensity adjustable for range/battery optimization. Built-in diffuser reduces illuminator intensity for close-range operations (map reading, document inspection). LED indicator confirms IR illuminator status—red LED constant when active.

Optical Excellence

25mm F1.2 objective lens with high light-gathering power. F1.2 represents one of fastest practical lens designs—maximizes light transmission for low-light performance. 25mm diameter optimal balance: larger than compact scopes (improved light collection) while maintaining handheld portability. Multi-coated optics minimize reflection losses. Close focus 0.25m enables precision observation from minimal distances.

Field of View & Magnification

40° field of view enables comprehensive area scanning from handheld position. Approximately 72 meters width at 100 meters distance—complete tactical awareness. 1x magnification (unity optical) provides direct 1:1 observation without geometric magnification. Diopter adjustment -4 to +2 diopters accommodates vision requirements without prescription glasses. Exit pupil 15mm (larger than typical—benefits low-light performance).

Mounting Flexibility

Handheld: Direct eye observation through eyepiece. Compact, portable, requires no external support. Standard operating mode for mobile surveillance.

Head mount: J-arm clips to standard military headgear, ballistic helmets. Hands-free operation—critical for navigation, tactical movement. Retains night-adapted contralateral vision. Auto shut-off feature: device powers off when flipped upward >90°, powers on when flipped down.

Weapon mount: Integrates behind reflex sights (ACOG, Aimpoint, EO Tech). Enables simultaneous daylight aiming + night vision targeting. Fast switching between daylight/night operational modes.

Battery Endurance

55+ hour continuous operation on single AA battery (or CR123 alternative). Exceptional endurance enables multi-day field operations without battery resupply. Low battery indicator prevents operational surprise—alerts before power depletion. Standard AA batteries universally available worldwide—no proprietary power requirements. Green phosphor lower power consumption enables extended runtime versus white phosphor alternatives.

Advanced Protection Features

Bright-light protection system: Activates by pressing potentiometer knob 5× within 1 second. Green LED flashes twice (500ms) when enabled. Image tube automatically shuts off if illuminance exceeds threshold (IC value 120) for 1 minute. Press knob to reactivate after bright exposure. Protects tube longevity, prevents operator flash-blindness.

Auto shut-off function: Activate by pressing potentiometer knob 3× within 1 second. Blue LED flashes twice (500ms) when enabled. Device powers off when tilted upward >90°. Conserves battery during standby, extends operational endurance.

Environmental Durability

Submersible waterproof design (IP67 standard). Shockproof aluminum construction. Operating range -40°C to +50°C (extended cold-weather capability). Ruggedized platform for harsh field conditions. Thermal fogging prevention capability. Meets military environmental standards.

Weight & Portability

Weight: 270g extremely portable compared to PVS-14 standard (320g). Compact dimensions 128×68×69mm enable secure transport, rapid deployment. Lightweight design enables extended handheld operation without fatigue. Balanced weight distribution for helmet-mounted configuration.

NVECTECH NVEC 14 Green – Professional Night Vision Standard

Gen 2+ green phosphor technology delivers battle-proven night vision performance. 25mm F1.2 optics maximize light gathering. Traditional green phosphor provides comfortable long-duration observation with lower power consumption. Lightweight 270g design enables extended handheld operation. Universal mounting enables handheld, head-mounted, or weapon-integrated operation. 55+ hour battery enables sustained multi-day operations without resupply. Complete field-ready platform for demanding night operations.

Industry-trusted compact monocular. Proven across military special operations, law enforcement, security organizations. Traditional green phosphor represents 30+ years proven technology—reliable performance for operators demanding battle-tested night vision capability.
