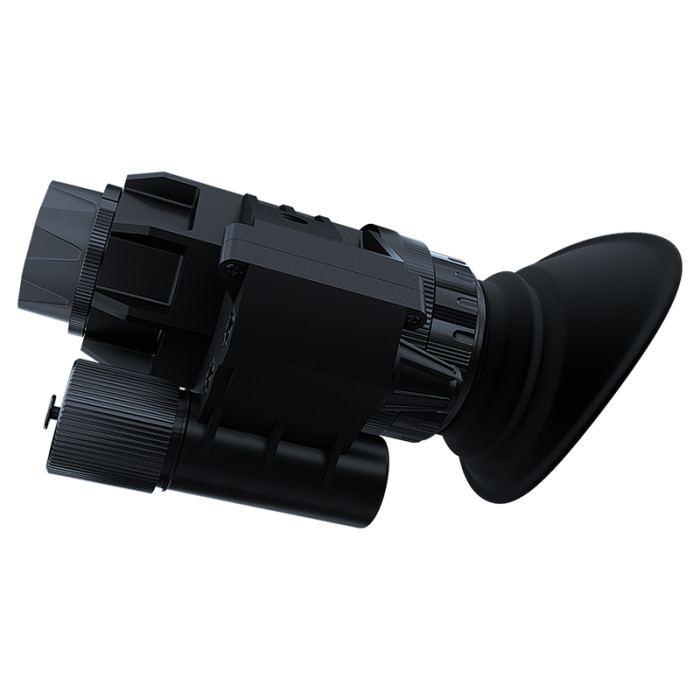

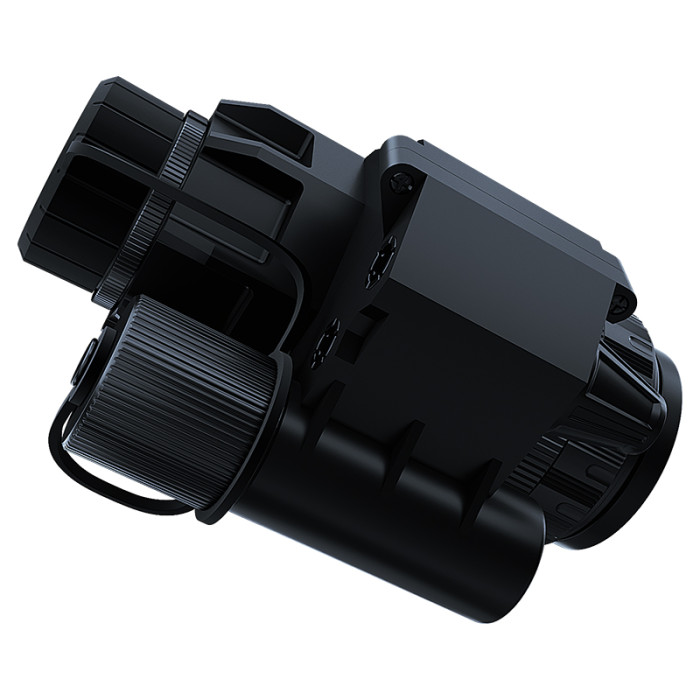

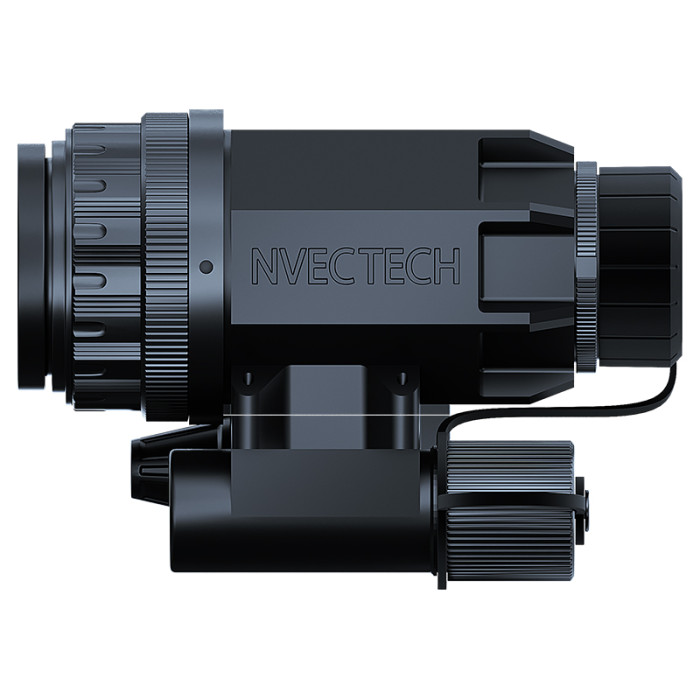

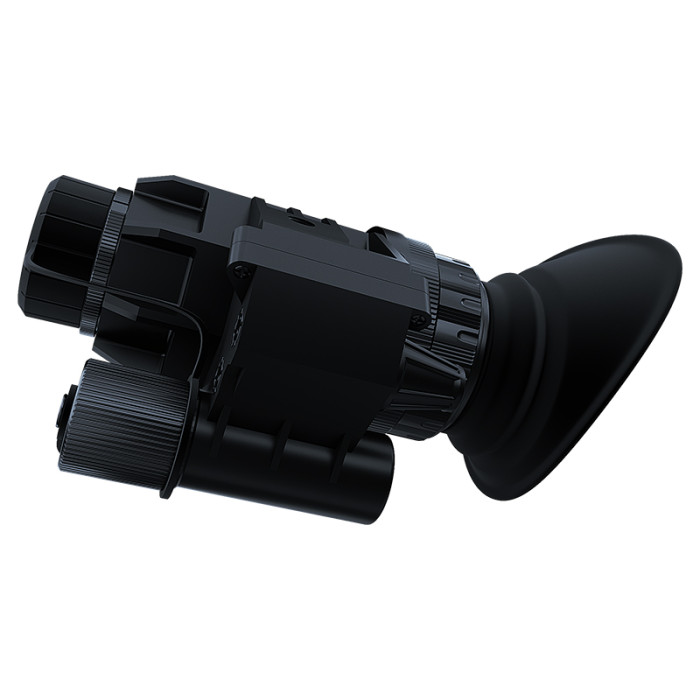

NVECTECH NVEC 14 White Night Vision Monocular

25mm F1.2 objective lens, 1x magnification, 40° field of view. Gen 2+ white phosphor image intensifier tube. Manual/automatic gain control with bright-light cut-off. Infrared illuminator (940nm). 55+ hour battery life (AA). Head-mounted, handheld, or weapon-mounted compatible.

NVECTECH manufactures professional-grade night vision systems trusted by military and law enforcement worldwide. Ukrainian thermal and night vision specialist with extensive field experience. White phosphor technology delivers superior image clarity and extended detection range. Gen 2+ tubes represent proven performance across demanding operational conditions. NVECTECH NVEC 14 White combines advanced tube technology with proven optical design for reliable night operations.

Specifications

White Phosphor Gen 2+ Technology

Gen 2+ white phosphor delivers superior light transmission versus traditional green phosphor. Brighter images, extended detection capability, improved target recognition. White phosphor eliminates green halo blooming—reduces eye fatigue during extended observation sessions. Figure of Merit (FOM) 1500+. Resolution 64+ lp/mm. Superior performance in starlight (photonic) and total darkness conditions with integrated IR illuminator.

Image Intensifier Performance

Gen 2+ white phosphor tube: 64+ lp/mm resolution. Signal-to-noise 16.2+. Figure of Merit ≥1500. Close focus 0.25m enables small-detail observation without manual refocus. Automatic gain control adapts brightness to ambient light changes. Manual gain override for operator precision. Bright-light cut-off (BLC) protects tube from sudden bright exposure (flashlights, vehicle headlights).

Infrared Illuminator

Integrated 940nm IR LED provides invisible illumination in total darkness. IR invisible to naked eye but detected by night vision systems. Enables full operational capability without ambient light dependency. Intensity adjustable for range/battery optimization. Critical feature for sustained night operations requiring reliability.

Optical Excellence

25mm F1.2 objective lens with high light-gathering power. F1.2 represents one of fastest practical lens designs—maximizes light transmission. 25mm diameter optimal balance: larger than compact scopes (improved light collection) while maintaining handheld portability. Multi-coated optics minimize reflection losses. Close focus 0.25m enables precision observation.

Field of View & Magnification

40° field of view enables comprehensive area scanning from handheld position. 1x magnification (unity optical) provides direct 1:1 observation without geometric magnification. Diopter adjustment -4 to +2 diopters accommodates vision requirements without prescription glasses. Exit pupil 15mm (larger than typical—benefits low-light performance).

Mounting Flexibility

Handheld: Direct eye observation through eyepiece. Compact, portable, requires no external support. Standard operating mode for mobile surveillance.

Head mount: J-arm clips to standard military headgear, ballistic helmets. Hands-free operation—critical for navigation, tactical movement. Retains night-adapted contralateral vision.

Weapon mount: Integrates behind reflex sights (ACOG, Aimpoint, EO Tech). Enables simultaneous daylight aiming + night vision targeting. Fast switching between daylight/night operational modes.

Battery Endurance

55+ hour continuous operation on single AA battery (or CR123 alternative). Exceptional endurance enables multi-day field operations without battery resupply. Low battery indicator prevents operational surprise. Standard AA batteries universally available worldwide—no proprietary power requirements. Field battery replacement simple, requires no specialized tools.

Environmental Durability

Submersible waterproof design (IP67 standard). Shockproof aluminum construction. Operating range -25°C to +50°C. Ruggedized platform for harsh field conditions. Thermal fogging prevention capability.

Weight & Portability

Weight: 270g —extremely portable compared to PVS-14 standard (350g). Compact dimensions enable secure transport, rapid deployment. Lightweight design enables extended handheld operation without fatigue.

NVECTECH NVEC 14 White – Professional Night Vision Standard

Gen 2+ white phosphor technology delivers proven night vision performance. 25mm F1.2 optics maximize light gathering. Lightweight 270g design enables extended handheld operation. Universal mounting enables handheld, head-mounted, or weapon-integrated operation. 55+ hour battery enables sustained multi-day operations without resupply. Complete field-ready platform for demanding night operations.

Industry-trusted compact monocular. Proven across military special operations, law enforcement, security organizations. Reliable performance for operators demanding proven night vision capability.
