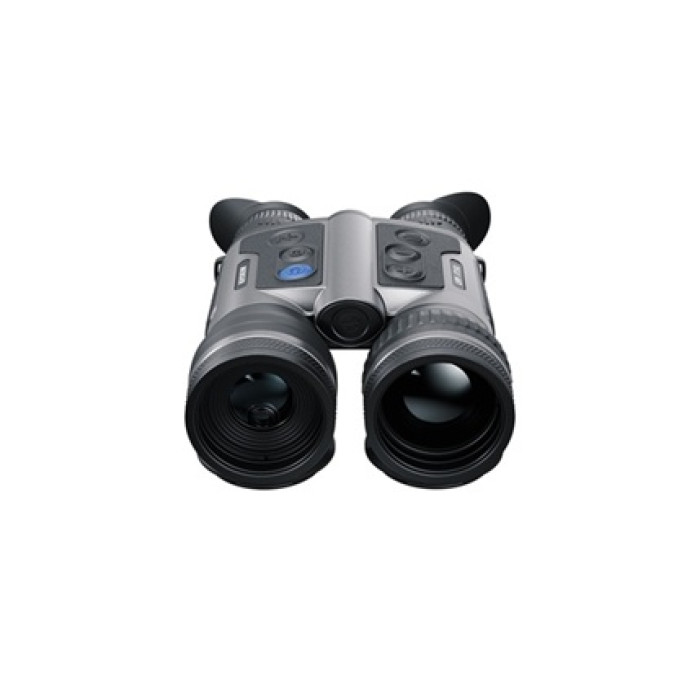

Pulsar Merger LRF XT50 Thermal Binoculars

Merger LRF XT50 High-Resolution Thermal Imaging Binoculars for Wildlife Observation

Pulsar Merger LRF XT50 is a premium thermal imaging binocular built for users who need exceptional image detail, accurate distance measurement, and comfortable two-eye observation in demanding outdoor conditions. Designed for hunters, wildlife observers, birdwatchers, and professional field users, it combines a high-resolution 1280×1024 @ 12 µm thermal sensor, a fast F50 / 1.0 objective lens, and a built-in laser rangefinder into one practical observation platform.

The Merger LRF XT50 is especially effective in darkness, fog, rain, and dense vegetation where conventional optics quickly lose clarity. Its classic binocular design supports natural viewing with both eyes, reducing fatigue during long sessions and making the device easier to use during extended scanning. If you want a thermal binocular that delivers premium detail, reliable range data, and strong field performance, Buy Merger LRF XT50.

Technical specifications

• Device type: Thermal imaging binocular with integrated laser rangefinder.
• Sensor: Uncooled thermal sensor, 1280×1024 resolution, 12 µm pixel pitch.
• Sensor NETD: < 40 mK.
• System NETD: < 20 mK.
• Frame rate: 50 Hz.
• Objective lens: F50 / 1.0.
• Magnification: 2–16x.
• Digital zoom: up to 8x.
• Field of view: 17.5° × 14°.
• Field of view at 100 m: 30.7 × 24 m.
• Detection range: up to 2300 m.
• Diopter adjustment: -5 to +4 D.
• Interpupillary distance adjustment: 62–74 mm.
• Eye relief: 15 mm.
• Display type: AMOLED HD.
• Display resolution: 1280×960.
• Laser rangefinder max measuring range: 1500 m.
• Laser rangefinder measurement accuracy: ±1 m.
• Laser wavelength: 905 nm.
• Laser safety class: Class 1.
• Video/photo resolution: 1280×960.
• Video/photo formats: .mp4 / .jpg.
• Internal memory: 64 GB.
• Wireless connectivity: Wi‑Fi, 2.4 / 5 GHz, IEEE 802.11 b/g/n/ac (WPA).
• Supported app: Stream Vision 2.
• Mount type: 1/4" socket.
• Power output voltage: 3.7 V.
• Battery system: Dual Li-Ion internal + APS3 external battery.
• Battery configuration: 3200 mAh external + 4000 mAh internal.
• Operating time: up to 6 hours.
• External power supply: 5 V / 9 V USB Type-C Power Delivery.
• Body material: Magnesium alloy.
• Protection rating: IPX7.
• Operating temperature: -25 to +50 °C.
• Dimensions: 197 × 140 × 72 mm.
• Weight: 950 g with batteries.

What makes the Merger LRF XT50 stand out

The biggest strength of the Merger LRF XT50 is its image quality. The 1280×1024 thermal sensor provides a very high level of detail, which makes it easier to recognize animals, read body shape, and separate targets from complex backgrounds. This is a major advantage in real field use, especially in woodland edges, open terrain, and low-contrast conditions where lesser devices tend to lose definition.

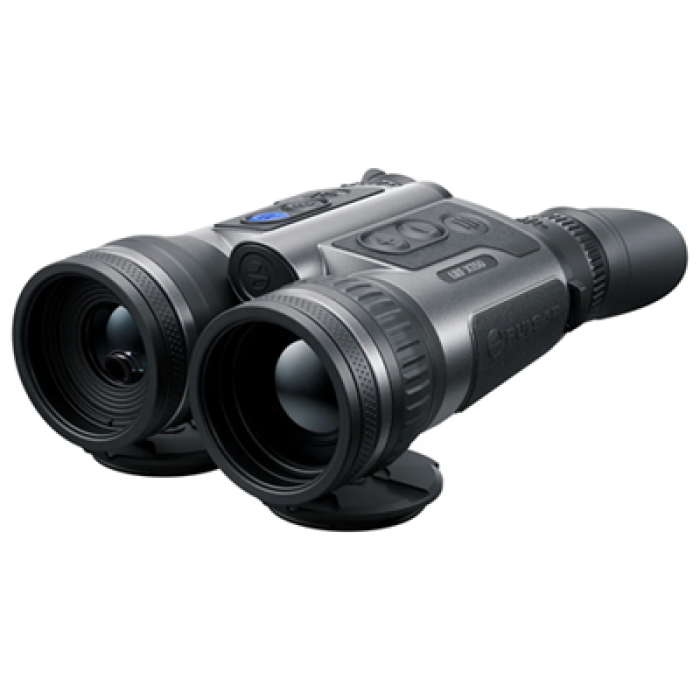

The 50 mm F1.0 objective lens helps the binocular collect more thermal information and maintain strong image quality at longer distances. Combined with the 50 Hz frame rate, the image stays smooth and stable enough for tracking moving subjects. The wide 17.5° field of view also improves scanning speed, making it easier to locate activity without constantly moving the binoculars.

Viewing comfort and ergonomics

Merger LRF XT50 uses a binocular design that feels natural in the hand and allows observation with both eyes. This reduces eye strain during extended sessions and creates a more comfortable viewing experience than a monocular. For hunters and wildlife observers who spend long periods scanning terrain, that comfort matters just as much as image quality.

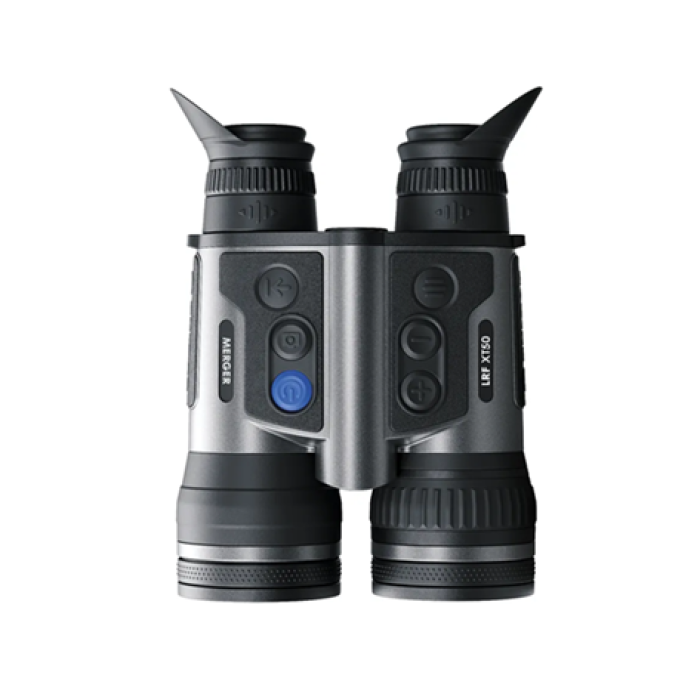

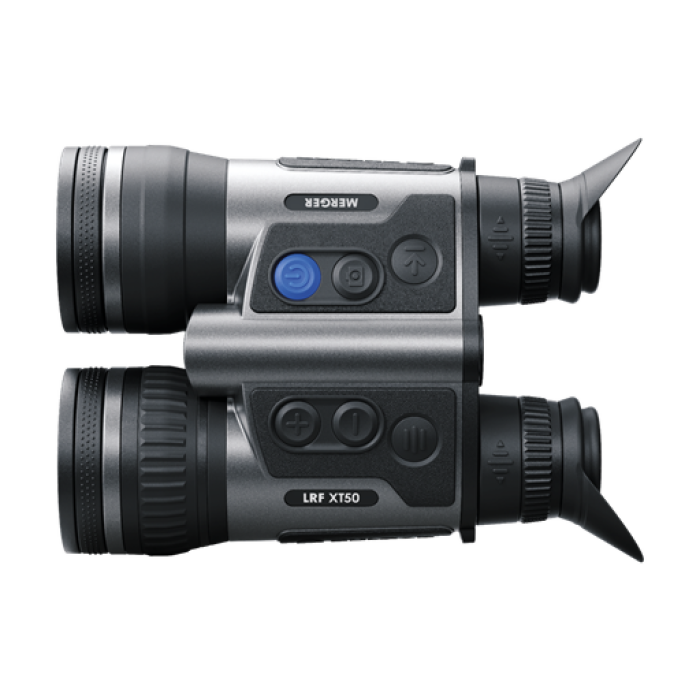

The interpupillary distance adjustment from 62 to 74 mm makes it easier to fine-tune the binoculars to individual users. Together with the diopter range from -5 to +4 D and 15 mm eye relief, the device can be adjusted for precise and relaxed observation over long periods. The ergonomics are supported by a compact body shape and six functional buttons placed for quick access to key controls.

Laser rangefinder and long-range use

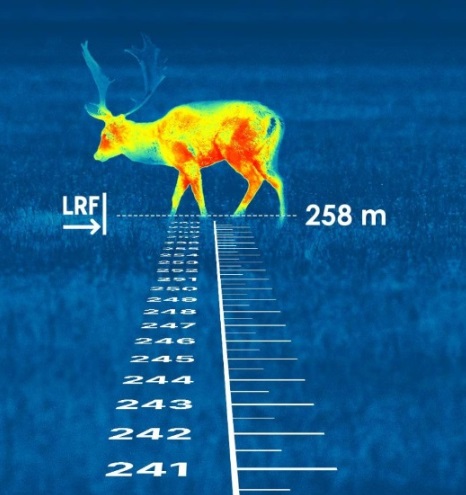

The built-in laser rangefinder is one of the Merger LRF XT50’s most useful features. It measures distances up to 1500 m with ±1 m accuracy, which gives users dependable range information when working in open fields, near ridgelines, across water, or in large forest clearings. This is especially valuable when estimating distance by eye is difficult or when quick field decisions are required.

With the laser rangefinder integrated into the binocular body, there is no need to carry a separate ranging device. That saves time, reduces gear load, and makes the binocular more practical for active use in changing conditions. The 905 nm wavelength and Class 1 laser safety classification support normal operational safety.

Colour palettes

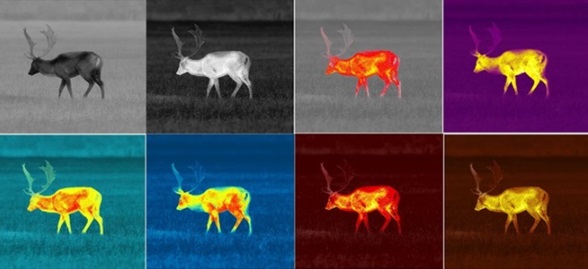

The display system offers a wide selection of colour palettes, allowing the user to fine-tune the device for different field conditions and observation tasks. Available options include White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, and Violet. White Hot, Black Hot, and Red Hot are designed for efficient searching and detection at longer distances in very low-visibility conditions. Ultramarine and Rainbow, with their warmer colour presentation, are better suited for closer observation and for assessing target detail. Red Monochrome, Sepia, and Violet help reduce eye fatigue, making them especially useful during long observation sessions.

Recording, connectivity, and documentation

The Merger LRF XT50 is equipped for observation and documentation. It records video and photos in 1280×960 resolution and stores files in .mp4 and .jpg formats. The 64 GB internal memory provides enough space for extended field use, observation logs, and saved captures from multiple trips.

Wi‑Fi connectivity at 2.4 GHz and 5 GHz makes it easy to connect the binoculars to a smartphone or tablet through the Stream Vision 2 app. Users can manage files, review content, and use the device more effectively in the field. This makes the XT50 more than a spotting tool — it becomes a complete observation and documentation system.

Power system and runtime

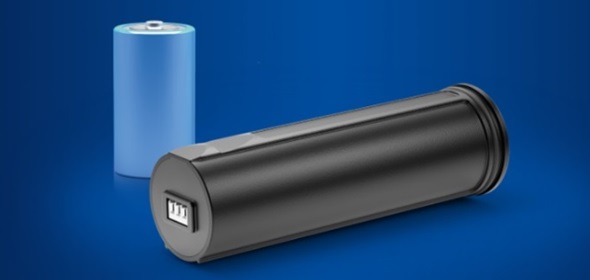

The dual battery system combines an internal battery with a removable APS3 external battery, giving the user a practical and flexible power setup. Total capacity is 3200 mAh external plus 4000 mAh internal, with operating time of up to 6 hours depending on conditions. This is suitable for most observation sessions and allows the user to work through a substantial part of the day or night.

The binocular also supports external power through USB Type-C Power Delivery at 5 V or 9 V, which adds flexibility for longer outings or stationary observation. That makes the Merger LRF XT50 easier to use in the field without worrying as much about battery limits.

Housing, durability, and environmental resistance

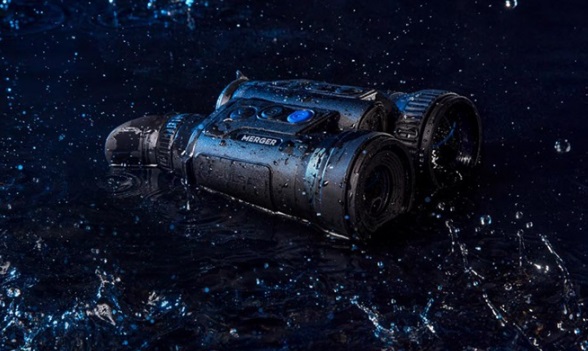

The body is made from magnesium alloy, which gives the binoculars a strong, rigid structure while keeping weight manageable. At 950 g with batteries, the Merger LRF XT50 remains practical for field use without feeling overly bulky. The IPX7 waterproof rating means it can handle rain, wet weather, and temporary immersion, which is important for serious outdoor users.

The operating temperature range from -25 to +50 °C makes the device suitable for cold mornings, winter sessions, humid conditions, and hot summer use. In difficult weather, this level of durability helps the binoculars remain reliable when other equipment would struggle.
