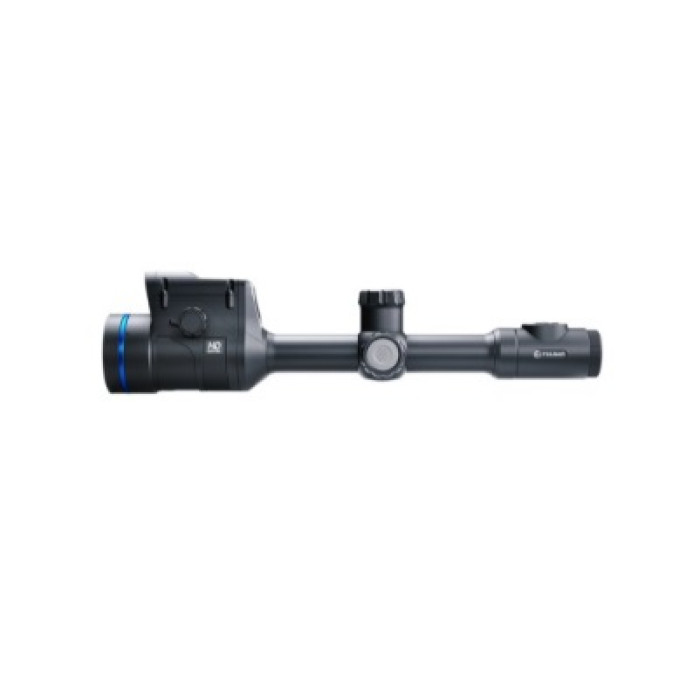

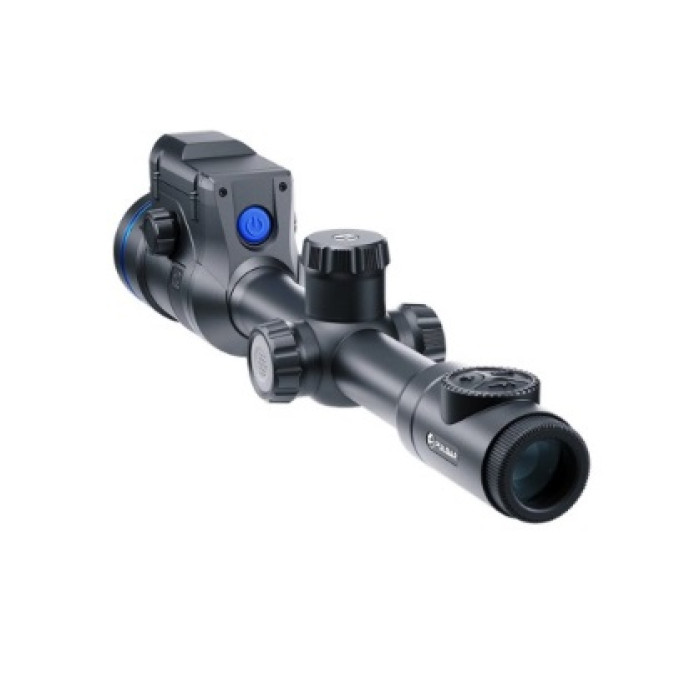

PULSAR THERMION 2 LRF XL60 – Ultra-High-Resolution Thermal Riflescope with Laser Rangefinder
PULSAR THERMION 2 LRF XL60 – Ultra-High-Resolution Thermal Riflescope with Laser Rangefinder
The PULSAR THERMION 2 LRF XL60 is a flagship thermal riflescope engineered for hunters, long-range shooters, and professional users who demand maximum image detail, precise distance measurement, and reliable performance in total darkness and adverse weather. Built around a European Lynred 1024×768 @ 12 µm thermal sensor (system NETD <20 mK), a fast F60 / f1.1 germanium objective, and an integrated 905 nm laser rangefinder, this scope delivers ultra-sharp, high-contrast thermal imaging out to 2,800 m with accurate ranging to 800 m.
Designed for use on rifles and shotguns up to 6,000 J recoil energy (including .375 H&H and 12-gauge), the Thermion 2 LRF XL60 combines rugged aluminum alloy construction, IPX7 waterproofing, and an extended -25°C to +50°C operating range with advanced digital features such as Picture-in-Picture, multiple reticles, ballistic calculator, and full Stream Vision 2 integration.

Key Performance Benefits
- Extreme Long-Range Detection: Up to 2,800 m detection range enables early target identification across open fields, mountainous terrain, and dense woodland.
- Ultra-High-Resolution European Sensor: Lynred 1024×768 @ 12 µm FPA with system NETD <20 mK provides exceptional contrast and fine detail even in low-contrast thermal scenes.
- Fast F60 / f1.1 Optics: Light-gathering germanium lens supports smooth 2.5–20× optical magnification for precise target inspection at any distance.
- Integrated Laser Rangefinder: 905 nm Class 1 LRF measures distances up to 800 m with ±1 m accuracy in single-shot or continuous scan mode.
- Smooth 50 Hz Imaging: High frame rate ensures fluid tracking of moving game or targets without motion blur.
- Rugged, Recoil-Resistant Design: Aluminum alloy housing withstands recoil up to 6,000 J, making it suitable for large-caliber rifles and 12-gauge shotguns.
- All-Weather Reliability: IPX7 waterproof rating and wide temperature tolerance (-25°C to +50°C) ensure dependable operation in rain, snow, fog, and extreme heat or cold.
Optical and Sensor Performance
- Sensor: Uncooled Lynred FPA, 1024×768 px, 12 µm pixel pitch, sensor NETD <35 mK, system NETD <20 mK, 50 Hz.
- Objective: F60 / f1.1 germanium lens with manual focus.
- Magnification: 2.5–20× optical.
- Field of View: 11.7° (approx. 20.5 m at 100 m).
- Eye Relief: 65 mm for comfortable shooting with both eyes open.
- Display: 2560×2560 Micro-OLED, ultra-high resolution and color depth, adjustable brightness.
- Diopter Adjustment: ±5 D for personalized focus correction.

Laser Rangefinder and Ballistics
- Rangefinder Type: 905 nm Class 1 laser, eye-safe for field use (IEC 60825-1:2014).
- Measurement Range: Up to 800 m with ±1 m accuracy.

- Modes: Single-shot and continuous scan for static and moving targets.
- Reticle Options: 10+ preset reticles including hunting, tactical, and scalable mil-dot styles.
- Reticle Colors: Multiple color options to suit different backgrounds and lighting.
- Click Value: 16 mm @ 2.5×, 8 mm @ 5×, 4 mm @ 10×, 2 mm @ 20× (at 100 m); total windage/elevation travel 3,200 mm at 100 m.
- Zeroing Modes: “One-shot zero” and traditional group-based zeroing; 5 user profiles with 10 memory slots each.
- Ballistic Calculator: Integrated via Stream Vision Ballistics app for precise holdover calculations.
- Cant Angle Indicator: Built-in 3-axis gyroscope/accelerometer displays rifle cant for improved long-range accuracy.

Digital Features and Image Enhancement
- Picture-in-Picture (PiP): Digital zoom window overlaid on the main image for closer target inspection without losing situational awareness.
- Image Detail Boost: Advanced processing enhances low-contrast scenes, reduces noise, and sharpens fine details.
- Color Palettes: 8 presets (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet) optimized for different tasks and conditions.
- Observation Modes: 4 dedicated modes for varied thermal environments and contrast levels.
- Dead Pixel Removal: Built-in function to correct defective pixels.
Recording, Connectivity, and App Support

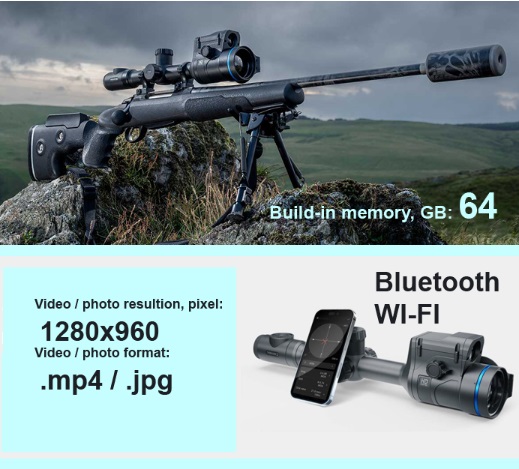

- Video/Photo Recording: Built-in recorder captures 1280×960 .mp4 video with sound and .jpg photos.
- Memory: 64 GB internal storage (approx. 10+ hours of video or hundreds of thousands of photos).
- Wi‑Fi: Dual-band 2.4 / 5 GHz, IEEE 802.11 b/g/n/ac, range >15 m line-of-sight.
- Bluetooth: BLE 4.2 for low-energy connectivity.
- Stream Vision 2 & Ballistics: Full app support for live streaming, remote control, firmware updates, media management, ballistic calculator, and cloud storage.

Power System and Runtime
- Battery System: Dual Li‑ion B-Pack Mini Power System – internal 4,900 mAh + external 2,300 mAh.
- Runtime: Up to 7 hours continuous operation at 22°C.
- Hot-Swap: External battery can be replaced without powering down.
- External Power: USB Type‑C Power Delivery (5 V / 9 V) for power banks or vehicle adapters.
Mounting and Physical Specifications
- Mount Type: Standard 30 mm rings (not included).
- Housing: Lightweight aluminum alloy with rubberized coating.
- Protection: IPX7 waterproof (1 m immersion, 30 min).
- Operating Temperature: -25°C to +50°C.
- Dimensions: 442 × 78 × 98 mm.
- Weight: 1.2 kg (without batteries).
- SKU: 76575.
Technical Specifications – PULSAR THERMION 2 LRF XL60
|
Specification |
Value |
|
Device type |
Thermal riflescope with integrated laser rangefinder |
|
Sensor |
Lynred uncooled FPA, 1024×768 @ 12 µm |
|
Sensor NETD |
<35 mK |
|
System NETD |
<20 mK |
|
Frame rate |
50 Hz |
|
Objective |
F60 / f1.1 germanium |
|
Magnification |
2.5–20× |
|
Field of view |
11.7° (20.5 m @ 100 m) |
|
Detection range |
Up to 2,800 m |
|
Display |
2560×2560 Micro-OLED |
|
Eye relief |
65 mm |
|
Diopter adjustment |
±5 D |
|
Laser rangefinder |
905 nm, up to 800 m (±1 m), Class 1 |
|
Reticles |
10+ presets, scalable |
|
Click value |
16 mm @ 2.5×, 8 mm @ 5×, 4 mm @ 10×, 2 mm @ 20× (100 m) |
|
Windage/elevation travel |
3,200 mm @ 100 m |
|
Zeroing modes |
One-shot, group-based; 5 profiles × 10 slots |
|
Video/photo |
1280×960, .mp4 (with sound) / .jpg |
|
Internal memory |
64 GB |
|
Wi‑Fi |
2.4 / 5 GHz, 802.11 b/g/n/ac |
|
Bluetooth |
BLE 4.2 |
|
App |
Stream Vision 2, Stream Vision Ballistics |
|
Battery |
Internal 4,900 mAh + external 2,300 mAh (Dual Li-Ion B-Pack) |
|
Runtime |
Up to 7 h |
|
External power |
5 V / 9 V USB‑C PD |
|
Recoil rating |
Up to 6,000 J (rifles, 12-gauge) |
|
Mount |
30 mm rings |
|
Waterproof rating |
IPX7 |
|
Operating temperature |
-25°C to +50°C |
|
Dimensions |
442 × 78 × 98 mm |
|
Weight |
1.2 kg (without batteries) |
Field Use and Practical Advantages
The Thermion 2 LRF XL60 excels in real European hunting scenarios – from dawn patrols in foggy valleys to night stalking in dense brush and high-altitude mountain hunts. Its 1024×768 Lynred sensor and F1.1 optics deliver ultra-clear thermal images where conventional optics fail, while the 2,800 m detection range gives ample time to identify and plan. The integrated 800 m laser rangefinder removes guesswork in distance estimation, supporting precise holdover calculations for ethical shots on deer, boar, and other medium-to-large game.
The 2.5–20× magnification and scalable reticles support both close-range driven hunts and precision shots well beyond 500 m. The dual-battery system and 7-hour runtime cover full-day outings without anxiety, and the hot-swap external pack means you never have to power down mid-session. Wi‑Fi, Bluetooth, and Stream Vision 2 turn the scope into a documentation and analysis tool – record successful shots, share footage, run ballistic calculations, and keep your firmware up to date from your smartphone.
Installation, Zeroing, and Maintenance
- Mounting: Install on any rifle with standard 30 mm rings; no special tools required.
- Zeroing: Use “one-shot zero” for quick setup or traditional group-based method; save up to 5 weapon/profile configurations.
- Maintenance: Clean lenses with microfiber cloth and lens cleaner; store in a dry case; keep batteries charged and replace external pack as needed.
Why This Model Is Trusted by Experienced Users
Experienced hunters and long-range shooters trust the Thermion 2 LRF XL60 for its proven ultra-high-resolution sensor performance, integrated laser ranging, rugged construction, and versatile digital toolkit. The combination of a 1024×768 @ 12 µm Lynred FPA, fast F1.1 optics, recoil resistance to 6,000 J, and comprehensive reticle/zeroing options makes it a do-it-all thermal scope for European conditions – from alpine winters to Mediterranean summers.
Buy or order now from Professional Optics – your trusted optics and tactical gear store in Split, Croatia, offering competitive prices, fast delivery across Europe, and full official EU warranty support.
