SCOPE VORTEX VENOM 1-6X24 SFP AR-BDC3 MOA
Vortex Venom 1-6x24 SFP AR-BDC3 MOA VEN-1601: Advanced LPVO Riflescope for Tactical and Hunting Applications
The Vortex Venom 1-6x24 SFP AR-BDC3 MOA represents cutting-edge value in low power variable optics, delivering exceptional performance for tactical operators, competitive shooters, and hunters who demand rapid target engagement across diverse shooting scenarios. Whether you need to buy Vortex Venom 1-6x24 for AR-15 carbine applications, hunting expeditions, or precision competition shooting, this riflescope combines advanced optical technology with rugged 30mm construction, offering superior speed and accuracy at competitive European pricing through Professional Optics in Split, Croatia.
About Vortex Optics
Vortex Optics stands as America's premier optics manufacturer, founded by the Hamilton family in Wisconsin in 1986. Starting as a modest retail operation, the company has evolved into an industry leader with over 400 employees and headquarters in Barneveld, Wisconsin. Vortex secured major military contracts, including the U.S. Army's Next Generation Squad Weapon program in 2022, proving their capability to deliver professional-grade performance. The company's VIP (Very Important Promise) unconditional lifetime warranty and customer-centric approach have established Vortex as the preferred choice among military, law enforcement, and civilian professionals worldwide.
Technical Specifications Vortex Venom 1-6x24
Specification | Value |
Magnification Range | 1-6x variable |
Objective Lens Diameter | 24mm |
Tube Diameter | 30mm |
Reticle Type | AR-BDC3 (MOA), Second Focal Plane |
Eye Relief | 94mm (3.7 inches) |
Field of View at 100m | 38.4-6.2m (126-20.2 feet at 100 yards) |
Parallax Setting | Fixed at 91.4m (100 yards) |
Turret Style | Capped |
Adjustment Graduation | 6.35mm per click (1/4 MOA) |
Maximum Adjustment Range | 140 MOA elevation/windage |
Travel per Rotation | 25 MOA |
Overall Length | 262mm (10.3 inches) |
Weight | 553g (19.5 ounces) |
Tube Construction | Single-piece aircraft-grade aluminum 6061-T6 |
Lens Coating | Fully multi-coated anti-reflective |
Environmental Protection | Nitrogen purged, O-ring sealed |
Illumination System | 11 brightness levels, CR2032 battery |

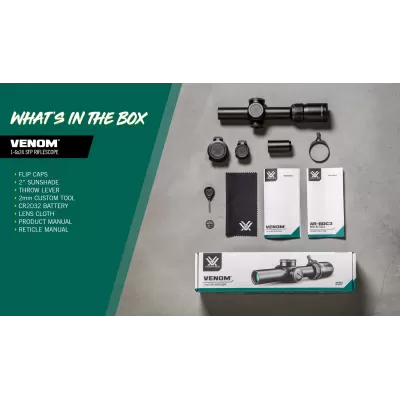

Package Contents: Riflescope, sunshade, throw lever, CR2032 battery, 2mm hex wrench, removable lens covers (objective and ocular), lens cleaning cloth, user manual.
Advanced Optical Performance and Construction
The Venom 1-6x24 delivers exceptional optical clarity through its fully multi-coated lens system, maximizing light transmission across all air-to-glass surfaces for superior brightness and contrast during critical shooting periods. The 24mm objective diameter provides optimal balance between light gathering capability and overall system weight, making it ideal for dynamic shooting applications where rapid transitions between targets are essential.
The single-piece 30mm aircraft-grade aluminum construction delivers exceptional strength and precise optical alignment while maintaining compatibility with professional-grade ring systems. This larger tube diameter provides significantly more internal adjustment range compared to traditional 25.4mm systems, offering 140 MOA of elevation and windage adjustment for extended-range capabilities.
Advanced nitrogen purging and O-ring sealing ensure waterproof, fogproof, and shockproof performance across extreme temperature ranges, maintaining optical clarity in driving rain, snow, and high humidity conditions. The hard-anodized matte finish provides superior durability against field impacts while reducing glare for tactical concealment.
AR-BDC3 Reticle System and Illumination Technology
The illuminated AR-BDC3 reticle represents advanced ballistic compensation technology specifically engineered for common 5.56/.223 ammunition performance from AR-15 platforms. The 1 MOA center dot provides precise aiming reference while the surrounding 16.625 MOA broken circle accelerates eye alignment for rapid target acquisition in close-quarters scenarios.
The ballistic drop compensation system extends effective engagement range to 650 yards with strategically positioned holdover points calibrated to standard 5.56 ballistic curves. Wind compensation markers provide 5, 10, and 15 mph wind drift references, enabling precise shots in challenging conditions without turret adjustments.
Eleven levels of illumination intensity accommodate diverse lighting conditions from bright daylight to complete darkness, with automatic shut-off preventing battery drain during extended operations. The glass-etched reticle maintains full functionality without illumination, ensuring reliability when battery power is unavailable.
