KONUSNOVA-114 D114/F.500 Telescope: Comprehensive Technical Analysis
The KONUSNOVA-114 D114/F.500 represents an outstanding entry-level Newtonian reflector telescope that delivers exceptional performance for its price point. This 114mm aperture, f/4.4 fast reflector combines wide-field capability with versatile observation features, making it ideal for both astronomical observation and beginner astrophotography.
Technical Specifications KONUSNOVA-114
Optical Performance & Field Applications
Wide-Field Advantage
The 500mm focal length provides a wide field of view superior to longer focal length telescopes in this price range. This characteristic makes the KONUSNOVA-114 exceptionally suited for large deep-sky objects including the Orion Nebula, Pleiades star cluster, and extended nebulae.
Light Gathering Capability
With its 114mm aperture, this telescope collects 265% more light than a typical 70mm refractor, enabling observation of:
Lunar details: Craters, mountains, and maria with exceptional clarity
Planetary features: Jupiter's atmospheric bands, Saturn's rings, Mars surface features
Deep-sky objects: Open clusters, bright nebulae, and nearby galaxies
Double stars: Resolution of close binary systems
Optical Quality
The telescope features fully coated optics with anti-reflection treatments that enhance light transmission and contrast. The parabolic primary mirror (not spherical) ensures diffraction-limited performance across the field of view.

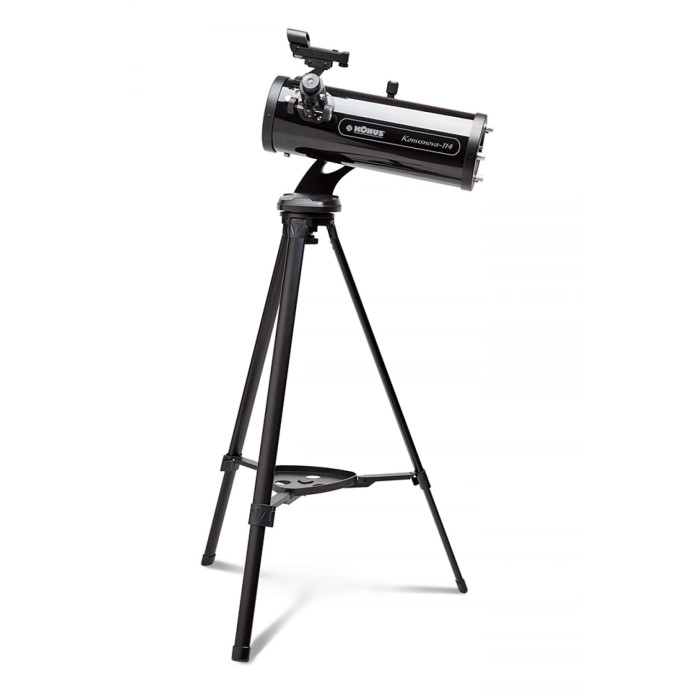

Alt-Azimuth Mount
The single-arm fork mount provides:
Solid stability despite lightweight construction
Smooth movement in both altitude and azimuth axes
Quick setup requiring minimal alignment procedures
Intuitive operation for beginners
Tripod System
The adjustable aluminum tripod extends from 31" to 48" (78-121cm), accommodating various observing positions and user heights. The central accessory tray provides convenient storage for eyepieces and filters.
Standard Equipment
Two eyepieces: 8mm (62.5x) and 20mm (25x) magnifications
2x Barlow lens: Doubles magnification (125x and 50x)
Moon filter: Reduces lunar glare for comfortable observation
Red dot finder: Facilitates rapid target acquisition

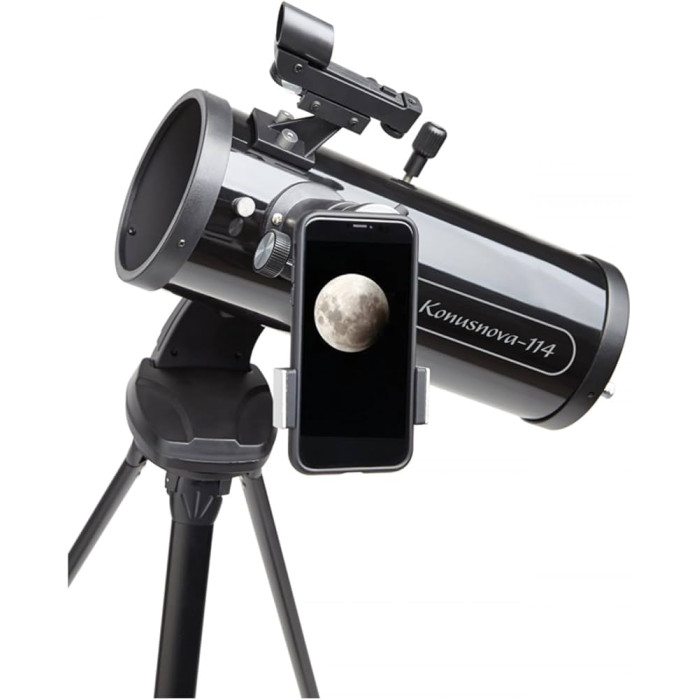

Smartphone adapter: Enables basic astrophotography and imaging
Comprehensive manual: Multi-language instructions
Installation and Zeroing
Initial Setup (15-20 minutes):
Assemble tripod and mount - no tools required
Install optical tube in cradle rings
Attach finder scope and align with main telescope
