Holosun ARO-EVO-DUAL closed reflex sight with integrated green laser and infrared laser, red dot sight + interchangeable reticle (2MOA dot, 2MOA/65MOA circle dot, 65MOA ring), Picatinny rail
Holosun ARO EVO Dual All-in-One Reflex Sight - T1/T2 Picatinny

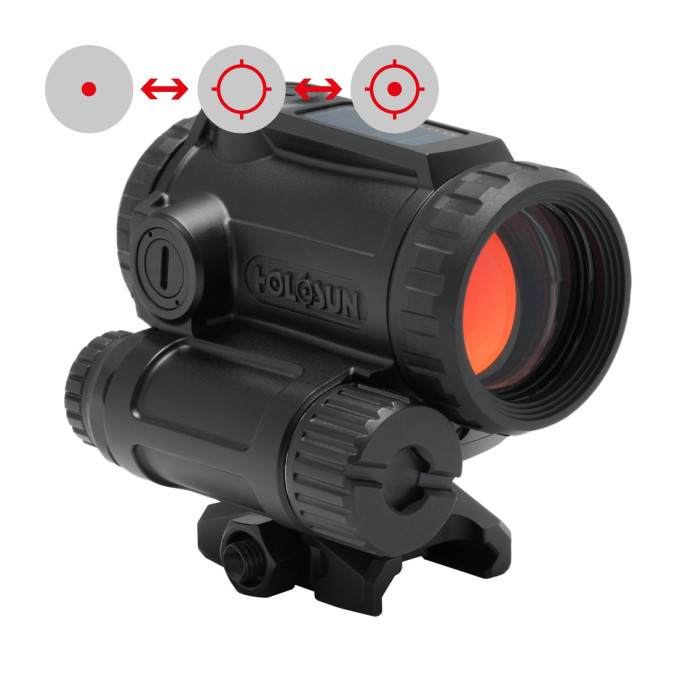

The Holosun ARO-EVO-DUAL integrates a closed reflex red dot sight with coaxial green (Class 3R, 5mW) and IR (Class 1, 0.7mW) lasers in a compact 6061-T6 aluminum package, perfect for SMGs, PCCs, SBRs on Picatinny rails during hunting, sport shooting, or airsoft. Its evolved 26 mm multi-coated window offers selectable 2 MOA dot or 2MOA/65 MOA circle-dot reticle at 650 nm wavelength for parallax-free 1x aiming with unlimited eye relief, while lasers align precisely for low-light or NVG scenarios. The removable Lower 1/3 co-witness mount (1.63" height) with cross-bolt clamp ensures rock-solid fit, powered by CR123A battery plus Solar Failsafe for uninterrupted operation.
Performance Advantages
Coaxial laser-optic alignment simplifies zeroing—one adjustment serves dot and beams—while VIS Override button on Crane remote instantly maxes reticle brightness and green laser for high-stress transitions. Shake Awake with memory and auto-brightness (8 day/4 NV levels) activate on movement, extending runtime; side buttons and flip caps enable gloved control. IPX8 nitrogen-purged housing and 1000G shockproofing handle submersion, recoil, and abuse without shift.
Technical Specifications Holosun ARO-EVO-DUAL
Feature | Specification |
Reticle | 2 MOA Dot / 2+65 MOA Circle (Red) |
Window Size | 26 mm |
Brightness Levels | 8 Day / 4 NV + Auto |
Click Value | 0.5 MOA |
Adjustment Range | ±50 MOA W&E |
Lasers | Green 5mW (3R) + IR 0.7mW (1) |
Battery | CR123A + Solar Failsafe |
Material | 6061-T6 Aluminum |
Waterproof | IPX8 |
Shock Resistance | 1000G |
Dimensions (LxWxH) | 72 x 53 x 70 mm |
Weight | 220 g |
Operating Temp | -30°C to 60°C |
Mount Height | 1.63" Lower 1/3 Co-Witness |
Footprint | Aimpoint T1/T2 (Picatinny) |
Practical Use Cases
Mount on PCC for airsoft CQB where 65 MOA circle speeds torso shots, flipping to green laser around barricades; hunters on SBRs use IR under NVGs for silent game ID at 100m. Sport shooters zero once at 50m—dot, green, and IR align—then trust through rapid strings; tactical setups activate via Crane pad for no-look control in low light.
Setup and Maintenance
Install removable Picatinny mount with 11 mm clamp (torque 25 in-lbs); zero at 50 yards using 0.5 MOA clicks on open turrets. Pair remote to Crane port for pressure-pad use; test VIS Override under stress. Clean lens with cloth after rain; access battery side-loaded without removal. Shipping from Split, Croatia across the EU at competitive prices—buy the ARO-EVO-DUAL now from Professional Optics for ultimate versatility.
Trusted Edge
Operators choose it for hybrid day/night capability in tight rail space—no extra modules, just reliable hits across conditions. Order today for all-environment dominance.
Frequently Asked Questions
- Do the lasers zero independently of the dot? No, coaxial alignment ensures one zero holds for red dot, green laser, and IR, streamlining setup on T1/T2 platforms.
- How does VIS Override function in emergencies? The remote button forces max reticle brightness and green laser activation simultaneously, overriding auto settings for instant visibility.
- NVG compatible without washout? Yes, 4 dedicated NV modes plus Class 1 IR (0.7mW) prevent bloom, pairing perfectly with PVS-14 or helmet-mounted NODs.
- Battery life with lasers active? 2-5 hours continuous dual-laser use; Solar Failsafe and Shake Awake extend optic runtime to 50,000+ hours in low-demand scenarios.
- Fits slim AR/SMG rails? Absolutely, compact 220g design with removable mount maximizes co-witness on short rails without overhang.
