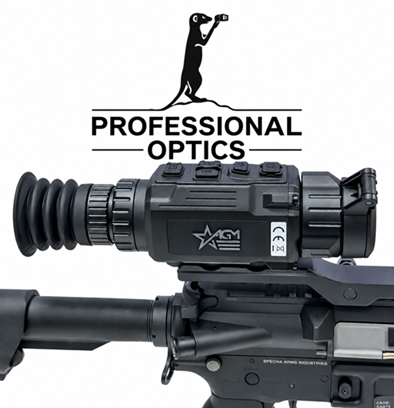

AGM Rattler V2 25-384 Thermal Sight - Professional Grade Thermal Imaging

Professionals looking to buy the AGM Rattler V2 25-384 thermal sight will find this advanced thermal imaging system delivers exceptional performance in the most demanding field conditions. This next-generation thermal scope combines cutting-edge 12-micron sensor technology with revolutionary sub-20 millikelvin thermal sensitivity, ensuring crystal-clear target identification even in complete darkness, dense fog, heavy rain, and adverse weather conditions that would render conventional optics useless.

Technical Specifications

Detector Type	12μm VOx Uncooled Focal Plane Array
Resolution	384 × 288 pixels
NETD Sensitivity	<20 mK (Sub-20 millikelvin)
Refresh Rate	50 Hz
Lens System	25mm Germanium F/1.0
Digital Zoom	1x, 2x, 4x, 8x (up to 16x total)
Field of View	10.5° × 7.9° (16.8 m @ 100 m)
Detection Range	1200 meters
Display	0.39" OLED 1024×768 HD
Battery Life	Up to 11 hours
Operating Temperature	-30°C to +55°C
Dimensions	219 × 68 × 67 mm
Weight	490 g

Superior Performance in Real-World Applications

The Rattler V2 25-384 features AGM's revolutionary sub-20 millikelvin thermal sensitivity rating, representing the highest temperature sensitivity in its class. This exceptional sensitivity ensures crystal-clear imagery even in the most challenging environmental conditions, including complete darkness, fog, smoke, dust, rain, and snow. The 384×288 resolution paired with the 12-micron sensor delivers sharp target identification capabilities that surpass many competing thermal scopes in higher price ranges.

The scope's 25mm Germanium objective lens provides an optimal balance between size and performance, offering excellent light transmission while maintaining a compact profile. The 2x base magnification with digital zoom capabilities extending to 16x ensures versatile target acquisition from close-quarters engagement to extended range identification. The wide 10.5° × 7.9° field of view allows for effective area scanning, particularly beneficial for hunting applications where multiple targets may be present.

Enhanced Operational Features

This thermal sight incorporates several advanced features that set it apart from conventional thermal scopes. The Shot Activated Recording (SAR) function automatically captures video and audio when the weapon is fired, providing valuable documentation for training and analysis purposes. The integrated stadiametric rangefinder enables precise distance measurements, while the Picture-in-Picture (PIP) mode allows simultaneous viewing of both wide and magnified fields of view.

The scope offers multiple color palettes including Black Hot, White Hot, Red Hot, and Fusion modes, allowing users to optimize target contrast based on environmental conditions. Ten different reticle options with multiple zeroing profiles accommodate various calibers and rifles, ensuring precise shot placement across different shooting scenarios. The simplified menu layout and raised 5-button configuration enable effortless operation even while wearing gloves.

Professional-Grade Construction and Reliability

Built to withstand the rigors of tactical and hunting applications, the Rattler V2 25-384 features a rugged aluminum housing designed to IP67 standards, providing complete protection against dust, moisture, and harsh environmental conditions. The scope can withstand recoil forces up to 1000G, making it compatible with high-powered rifle calibers. The enhanced focus ring with short throw design allows for rapid target acquisition and precise focusing adjustments.

The upgraded battery compartment accommodates two rechargeable lithium-ion batteries, each providing up to 11 hours of continuous operation. The USB-C charging interface ensures convenient power management, while the external power supply compatibility allows for extended missions. The scope includes a custom ADM Quick Detach mount system for rapid installation and removal while maintaining zero retention.

AGM Rattler V2 25-384 Thermal Sight vs Thermal Sight AGM Varmint V2 LRF 35-384

• Purpose and Range: The Varmint V2 LRF, with its 35mm objective lens and 1800m detection range, is designed for precise long-distance shooting. The Rattler V2, with a 25mm lens and a 1200m range, is a more versatile option for medium-range engagements and offers a wider field of view for rapid target acquisition.

• Functionality: The main advantage of the Varmint V2 is its integrated laser rangefinder (LRF) with a ballistic calculator, which is critical for making accurate shots at long distances. The Rattler V2 does not have this feature.

• Battery Life: The Rattler V2 offers significantly longer battery life, running for up to 11 hours on a single charge. In contrast, the Varmint V2 operates for about 6 hours, which is due to its more power-demanding internal components.
